Anchor Drilling Machine

YG Anchor Drilling Machine For Sale

An anchor drilling machine is mainly used in landslides and dangerous rock mass anchoring projects in the prevention and control of various geological disasters in hydropower stations, railways, and highways. The anchor drilling machine is especially suitable for high-slope rock mass anchoring projects. An anchor drilling machine is also suitable for the construction of urban deep foundation pit support. Anti-floating anchor rod and foundation grouting reinforcement engineering hole. Blasting hole of blasting engineering. High-pressure jet grouting pile and tunnel pipe shed support hole, etc. Slightly change the power head of the anchoring machine to facilitate all-around construction.

Free Quote

Crawler Mounted Anchor Drilling Rig With Full Hydraulic Power Head
Crawler Mounted Anchor Drilling Rig With Full Hydraulic Power Head

Main drilling methods: conventional down-the-hole hammer drilling, casing pipe drilling, and spiral drilling. In the construction practice of hole-making in various complex formations and different drilling methods. The excellent drilling performance of the YG anchor drilling rig has been recognized by the majority of construction units and peers. YG Machinery has specialized in selling anchor drilling rigs for more than 15 years. So if you are looking for professional anchor drilling equipment for sale, please feel free to contact us.

Free Quote


Crawler Anchoring Drilling Rig
Crawler Anchoring Drilling Rig

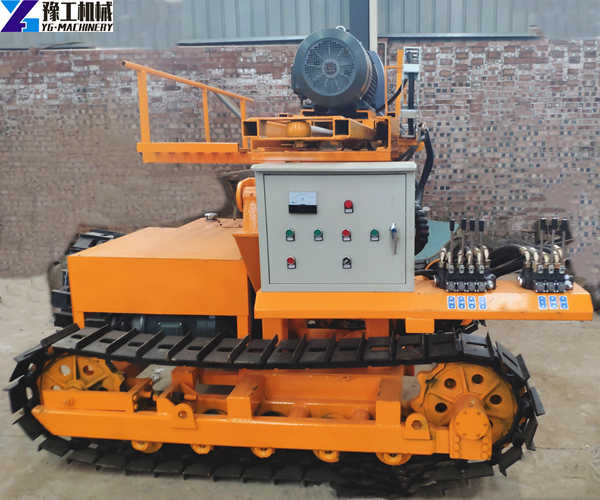

Hot Sale YGMG40 Anchor Drilling Machine

YGMG40 anchor drilling machine is mainly used for the construction of anchor holes, drainage holes, and grouting holes in railways, and highways. Hydropower landslide treatment projects, and dangerous rock anchoring projects. And the construction of blasting holes in blasting engineering and tunnel pipe shed support holes.

  1. YGMG40 anchor drilling machine has a compact structure, lightweight, and has good dismantling, which is convenient for relocation and positioning. YG anchor drilling equipment adopts full hydraulic control, which is convenient and flexible to operate, saving time and effort. The anchor drill rig can be operated remotely. So as to effectively protect the safety of the operator.
  2. YGMG40 anchor drilling machine adopts a Cycloidal slewing motor. The whole machine has stable and reliable performance and long service life.
  3. The anchor drill machine has a wide application range and strong drilling ability. The powerhead has a long stroke and high drilling efficiency.
  4. The powerhead and the guide rail are connected by a new wear-resistant plate, which can effectively reduce the wear of the guide rail. And increase the service life of the guide rail.
  5. YGMG40 anchor drilling rig has a wide range of drilling angles. The drilling positioning is convenient and reliable.
  6. This anchor drilling can be applied to various drilling techniques.

Free Quote

Hot Sale Anchor Drilling Machine
Hot Sale Anchor Drilling Machine


YGMG40 Item Parameter
Drilling Rig Drilling Diameter φ90~180mm
Drilling Depth 10~60m
Drilling rod OD φ76   φ89
Propeller flip angle 0-90°
Powerhead output speed 42-50rpm
output maximum torque 2400N·m
Maximum stroke 1800mm
Maximum lifting force 25kN
Maximum feed force 20kN
Hydraulic system Rated pressure 16MPa
Main motor model Y100L-4
Power 7.5KW
Weight Host 570kg
Hydraulic station 355kg
Control console 145kg
Powerhead 235kg
Dimension Host(mm) L2800×W800×H1400
Hydraulic station(mm) L640×W600×H580

We have a complete series anchor drilling machine for sale. Due to the page length limitation, not all anchor drilling rig parameters are displayed. If you want to buy an anchor rig, please feel free to contact us.


Advantages of YG Anchor Drilling Rig

  1. Efficient slope protection, movable ground drilling, saving manpower, and improving engineering benefits.
  2. The full hydraulic operating platform is fast-moving and convenient operation.
  3. The slope protection type crawler anchor drilling machine has a reasonable structure design and a wide adjustable angle to meet diversified drilling operations.
  4. YG anchor drilling machine adopts silent processing, with low noise and no pollution, which is suitable for urban construction.
  5. The new style of silent cooling fan disperses the heat of the hydraulic oil tank. Including the smooth operation of the hydraulic system.
  6. The operation is simple, two-person can complete the drilling independently, and the work efficiency is high. Contact us if you want to buy high efficient anchor drilling machine.

Free Quote

YG Anchor Drilling Equipment Supplier
YG Anchor Drilling Equipment Supplier

Specific Drilling Method And Equipment Configuration

Three-wing drill bit + spiral drill pipe for drilling. This anchor drilling machine configuration is suitable for high-speed drilling in soil and other strata.

Drill pipe + impactor + diamond drill bit for drilling and air slagging. It is suitable for rock formation and broken layer construction.

Composite drilling of drill pipe and casing. To be equipped with an eccentric drill, free clamp, official boots, and pipe extruder.

If you don’t know which drilling method to choose, please tell us your construction conditions. And then, our professional sales manager will provide you with the most suitable plan according to your project type, construction period, budget, etc.

Free Quote

Anchor Drill Equipment Console
Anchor Drill Equipment Console

The Specific Application of Anchor Drill Machine

  1. Protection of the downstream of the dam and the impact area of the flood discharge tunnel.
  2. Slope reinforcement, slope retaining, anchoring retaining wall, landslide prevention.
  3. Application in deep foundation pit engineering: basement, underground parking lot, subway, underground street support.
  4. Application in road and bridge foundation reinforcement engineering: prevent bridge foundation sliding, bridge arms, and pier anchorage. The long-span bridge arch structure is stable.
  5. Application in shaft and lane and tunnel surrounding rock support: prevent tunnel collapse and control tunnel deformation.
  6. Other applications: preventing viaduct tipping, retaining wall tipping, etc.

Free Quote

Anchor Drilling Rig Machine Application
Anchor Drilling Rig Machine Application
