What HDD Drilling Machine Do We Have For Sale?

Horizontal Directional Drilling Rigs are also called trenchless drilling rigs. A horizontal directional drilling machine is a construction machine that lays a variety of underground utilities (pipes, cables, etc.) without excavating the ground surface. For the convenience of description, generally, we will use the maximum push-pull force: kN, or tonnage to express. As a leading horizontal directional drilling rigs manufacturer in China, we have small horizontal directional drilling rigs (5-45 tons), medium-sized horizontal directional drilling rigs (45-100 tons), and large horizontal directional drilling equipment for sale (above 100 tons). Contact us to get the HDD machine’s price.

Free Quote

45Ton YG450D-L HDD Drilling Rig Manufacturer
YG HDD Drilling Rig Manufacturer

Worldwide, in terms of the number of HDD drilling machines sold, the demand for small horizontal directional drilling machines and medium horizontal directional drilling rigs is the largest. Especially 32-ton, 42-ton, 45-ton, and 90-ton HDD drill rigs. The HDD drill machine parameters of these two hot-selling models are shown below. Due to the loading speed of the webpage, it is hard to upload product display horizontal directional drilling videos, construction case videos, etc. If you want horizontal directional drilling machine details (including horizontal directional drilling machine video, HDD machine price, and more), please contact us.

YG320D-L HDD Machine Main Technical Parameter

Rig Weight 10500kg Dimension(L*W*H) 7300×2150×2250
Max.Push & Pull Force 350/700kN Max. Torque 12600N·m
Max.Push & Pull Speed 40m/min Max.Rotation Speed 140r/min
Engine Power 154kW Max.Mud Pump Flow 320L/min
Caterpillar Walking Speed 3.5-6.0(km/h) Max.Mud Pump Pressure 8MPa
Entry Drill Angle 12°-22° Max.Climbing Gradient 18°
Max.Aperture Diameter Ф1100mm MAx.Crossing Length 400m

Free Quote

YG420D-L HDD Drilling Machine Technical Parameter

Rig Weight 13000kg Dimension(L*W*H) 7300×2250×2270
Max. Push & Pull Force 430/860kN Max. Torque 19000N·m
Max. Push & Pull Speed 53m/min Max.Rotation Speed 185r/min
Engine Power 179kW Max.Mud Pump Flow 450L/min
Caterpillar Walking Speed 3-5(km/h) Max.Mud Pump Pressure 8MPa
Entry Drill Angle 12°-25° Max.Climbing Gradient 18°
Max.Aperture Diameter Ф1350mm MAx.Crossing Length 650mm

Free Quote

YG450D-L HDD Drilling Rig Technical Parameter

Rig Weight 14500kg Dimension(L*W*H) 8450×2320×2650
Max. Push & Pull Force 480/960kN Max. Torque 27000N·m
Max. Push & Pull Speed 55m/min Max.Rotation Speed 116r/min
Engine Power 194kW Max.Mud Pump Flow 600L/min
Caterpillar Walking Speed 3-5(km/h) Max.Mud Pump Pressure 10MPa
Entry Drill Angle 12°-22° Max.Climbing Gradient 18°
Max.Aperture Diameter Ф1500mm MAx.Crossing Length 800mm

Free Quote

YG900D-L HDD Drilling Rig Technical Parameter

Rig Weight 21000kg Dimension(L*W*H) 10600×2260×2550
Max. Push & Pull Force 1020/1530kN Max. Torque 38000N·m
Max. Push & Pull Speed 55m/min Max.Rotation Speed 120r/min
Engine Power 264kW Max.Mud Pump Flow 800L/min
Caterpillar Walking Speed 3-5(km/h) Max.Mud Pump Pressure 10MPa
Entry Drill Angle 11°-22° Max.Climbing Gradient 18°
Max.Aperture Diameter Ф1500mm MAx.Crossing Length 1000mm

Free Quote

42Ton HDD Machine For Sale
42Ton HDD Machine For Sale

45 Ton HDD Machine Price
45 Ton HDD Machine Price

Due to the webpage length limitation, the parameters of the horizontal directional drilling rigs of these four models are displayed first. If you need other models of HDD machine prices & specs, please do not hesitate to contact us.

Application

A horizontal directional drilling rig is a construction machine that lays various underground utilities (pipes, cables, etc.) without excavating the ground surface. HDD drilling rigs are mainly used at crossroads, railways, buildings, rivers, and under difficult excavation conditions such as downtown areas, cultural relics protection areas, crop and vegetation protection areas, etc. To carry out the laying construction or renewal of flexible pipelines such as water supply, gas, electricity, telecommunications, natural gas, oil, sewage discharge, etc. The horizontal directional drilling machine is suitable for sandy soil, clay soil, etc. HDD drilling machines are not suitable for high water tables and pebble formations. Works in most non-hard rock areas. Contact us for the latest horizontal directional drilling price list.

Free Quote

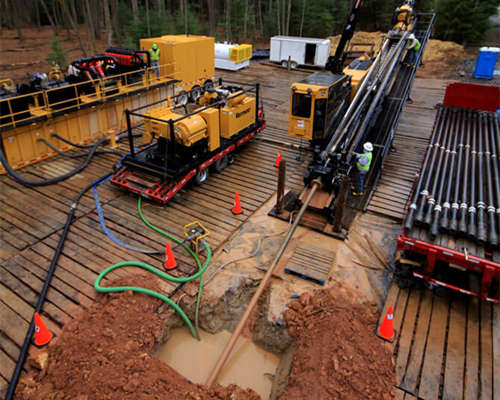

YG Horizontal Directional Drill Machine For Pipeline Installation
YG Horizontal Directional Drill Machine For Pipeline Installation

What Kind Of HDD Drilling Machine Do You Need?

If you have already determined which model of drilling rig you need, please contact us directly. If you don’t know which HDD trenchless drilling machine model to choose, don’t worry. We will give you professional advice. First of all, you have to tell us what project you are going to do so that we can judge whether a horizontal directional drilling rig is needed. Then, what kind of drill pipe do you need? How big is the pipe diameter? Also, we need to know the horizontal traversal distance. Of course, it’s better if you know the maximum push-pull force. Contact us to get the HDD machine price now. Our online customer service is at your service 24/7. Any questions, please feel free to contact us.

HDD Trenchless Machine Supporting Equipment

As a professional horizontal directional drilling rig supplier, we have complete supporting facilities for you to choose from.

Commander: Location System

Guidance instrument location system. We all know that in the construction of horizontal directional drilling rigs, the locator’s important. It’s like a commander throughout the construction process. This involves important issues such as construction surveying, orientation, and accuracy. YG HDD machine company has a self-developed high-quality and low-cost location system for you to choose from. It has the characteristics of simple control, accurate measurement, and fast response. If you want to be equipped with other brands of guide locators is also possible.

YG HDD Machine Middle Size Drilling Rig For Sale
YG HDD Machine Middle Size Drilling Rig For Sale

Free Quote

Mud Pump

  • YG’s heavy-duty mud pump system is specially designed for the trenchless project. The characteristics of PLC control and 5-level adjustment for slurry flow can meet the demand of various project requirements, discarding the traditional method of changing cylinder liners to adjust the flow.
  • Equipped with LED display, indicating slurry flow, pressure, engine parameters, trouble-shooting data, etc.
  • The skid-mounted type and dimension meet the standard of transportation regulations both at home and abroad.
Top Brand Middle Size HDD Machine Price
Top Brand Middle Size HDD Machine Price

Pipe Thruster

  • The hydraulic transmission is adopted for the pipe thruster, and the diesel engine is selected as a power source. The pipe thruster mainly encompasses four parts: the main machine, the electrical system, the hydraulic system, and the operating room.
  • The main machine and the power station are independently designed for transport convenience.
  • The serrated edge technique is YG’s patent for the large diameter holding the edge, This technique can fundamentally solve the problem that the tiles clearance extruding damages the pipe in the construction process.
YG HDD Drilling Tools For Sale
YG HDD Drilling Tools For Sale

Free Quote

HDD Drilling Tools

Drill bit
Fluted reamer
Barrel reamer
Soft rock reamer
10T, 40T, 100T Swivel series
Sub saver
“U” buckle
Drill pipe

We will equip you with a full range of drilling tools according to your needs.

YG HDD Horizontal Directional Drilling Machine Drilling Tools
YG HDD Horizontal Directional Drilling Machine Drilling Tools

HDD Machine Market

In the past two decades, our drilling rig equipment has been exported to more than 30 countries and regions at home and abroad. Especially, customers from Turkey, Russia, Iraq, Pakistan, India, Philippines, Malaysia, Indonesia, Thailand, South Korea, UAE, South Africa, Tanzania, the United States, Brazil, Chile, Peru, Papua New Guinea, Australia, and other countries are very good at our level Directional drilling rigs have high praise. If you also need a horizontal directional drilling rig, contact us now. Early delivery and fast delivery are also our advantages. Please leave your requirement to get a horizontal directional drilling price list.
