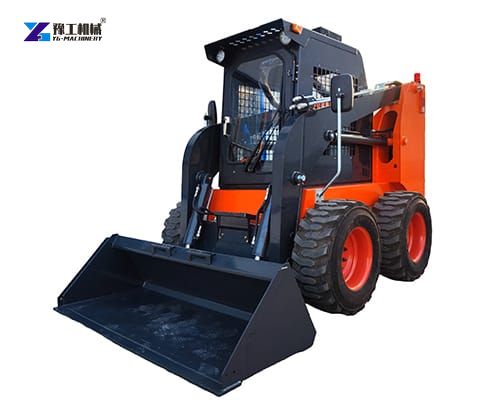

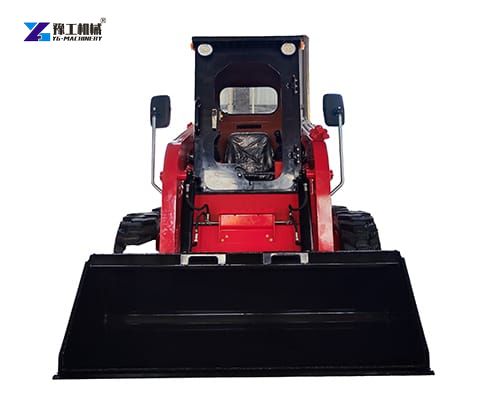

Skid steer front end loader serves as the backbone of modern compact earthmoving, site development, material handling, and municipal maintenance operations. By pairing zero-radius turning capability with high-flow auxiliary hydraulics, these versatile machines deliver maximum output within tight spaces where conventional wheel loaders cannot maneuver. Our compact skid steer lineup includes four distinct models: YGW45, YGW65, YGT50, and YGT65, engineered to cover light-duty to mid-heavy operational demands. The entire series is built with heavy-duty steel frames, reinforced lift arms, and low-center-of-gravity chassis to ensure stability even at maximum dumping height.
Specifications of the Skid Steer Front End Loader
| Model | YGW45 | YGW65 | YGT50 | YGT65 |
| Operating load (kg) | 700 | 1050 | 700 | 1000 |
| Max Speed(km/h) | 10 | 10 | 10 | 12 |
| Rated flux (L/min) | 80 | 89 | 80 | 89 |
| Rated power (kw) | 36.7 | 55 | 45 | 55 |
| Fuel tank capacity (L) | 70 | 75 | 50 | 90 |
| Self-weight bucket (kg) | 3766 | 4498 | 4074 | 5024 |
| Bucket capacity (m³) | 0.4 | 0.5 | 0.4 | 0.5 |
| Overall operating height (mm) | 3560 | 3850 | 3660 | 3900 |
| Height to bucket hinge pin (mm) | 2765 | 3020 | 2730 | 2970 |
| Height to top of cab (mm) | 2230 | 2295 | 2349 | 2409 |
| Height to bottom of level bucket(mm) | 2909 | 2862 | 2500 | 2790 |
| Without bucket length(mm) | 2325 | 2527 | 2170 | 2450 |
| Overall length with bucket(mm) | 3276 | 3428 | 3150 | 3400 |
| Dumping angle at maximum height(° ) | 37.5 | 32 | 40 | 40 |
| Dumping height(mm) | 2342 | 2410 | 1990 | 2270 |
| Dumping reach(mm) | 550 | 850 | 1040 | 1120 |
| Rollback of bucket on ground(° ) | 20.5 | 23 | 30 | 30 |
| Rollback of bucket at full height(° ) | 96.5 | 95 | 100 | 100 |
| Wheelbase(mm) | 991 | 1074 | 1230 | 1500 |
| Ground clearance(mm) | 185 | 205 | 230 | 200 |
| Angle of departure(° ) | 20 | 20 | 18.5 | 18.5 |
| Front turning radius without bucket(mm) | 1188 | 1320.5 | 1064 | 1230 |
| Front tuning radius(mm) | 2030 | 2095 | 1825 | 2010 |
| Rear tuning radius(mm) | 1630 | 1680 | 1264 | 1720 |
| Rear axle to bumper (mm) | 929 | 1057 | 590 | 730 |
| Tread width (mm) | 1462.5 | 1498 | 1022 | 1482 |
| Width (mm) | 1726.5 | 1805 | 1422 | 1782 |
| Bucket width (mm) | 1727 | 1828 | 1727 | 1828 |
Technical Advantages of Modern Skid Steer Front End Loader Units
The biggest operational advantages stem from hydraulic efficiency, compact dimensional profiles, and high maneuverability.
First, the closed hydraulic system delivers stable rated flow ranging from 80 L/min to 89 L/min across our main product range. Sufficient hydraulic flow directly translates to faster bucket curl, lift, and dump cycles. On busy sites, faster cycle times add tangible daily material‑handling throughput without increasing engine power output.
Second, compact overall dimensions support operation within tight work zones. Some model variants have overall machine lengths below 3200 mm when fitted with buckets. Low front turning radius values allow operators to work close to walls, storage piles or building foundations without repeated repositioning. This matters for urban renovation, indoor demolition cleanup and narrow‑access farm yards.
Third, optimized bucket kinematics deliver practical dumping performance. Maximum‑height dumping angles reach up to 40 degrees on selected models. Good dumping angles ensure full material release, minimizing leftover debris inside the bucket after each lift cycle. Ground‑position bucket rollback angles up to 30 degrees help hold loose gravel, soil or crushed stone during transport across uneven ground, reducing material spillage while driving.
Working Principle & Drive Mechanics of Compact Skid Steer Loader
The skid steer front end loader operates via skid steering, where the left and right side drive systems operate independently:
1. Differential Wheel/Track Drive: Turning is achieved by driving the wheels or tracks on one side at a different speed—or in an opposite direction—from the other side, pivoting the machine in place.
2. Hydraulic Force Transmission: The primary engine powers variable-displacement axial piston pumps, sending pressurized hydraulic fluid to heavy-duty radial piston motors on each side drive.
3. Lift & Tilt Hydraulics: Dual lift cylinders elevate the main boom arms, while dual bucket cylinders drive the tilt function. Self-leveling mechanical linkage automatically keeps the bucket level during ascent to prevent spillage.
Applications & Job-Site Deployment of Skid Steer Front Loader
Our skid steer front end loader excels across diverse industrial settings:
- Earthmoving & Civil Construction: Backfilling trenches, site leveling, loading dump trucks, and hauling aggregate.
- Demolition & Site Clearance: Transporting debris, breaking concrete pavements with hydraulic hammers, and sorting scrap metal.
- Agriculture & Livestock Operations: Cleaning feed lots, moving round bales, handling silage, and digging post holes.
- Road Maintenance & Municipal Work: Milling asphalt, sweeping debris, clearing winter snow, and trenching utilities.
Performance Comparison: Wheeled vs. Tracked Loaders
Understanding the performance difference between our wheeled and tracked series skid steer front end loaders is critical to choosing the right machine for your site conditions:
1. Speed & Mobility

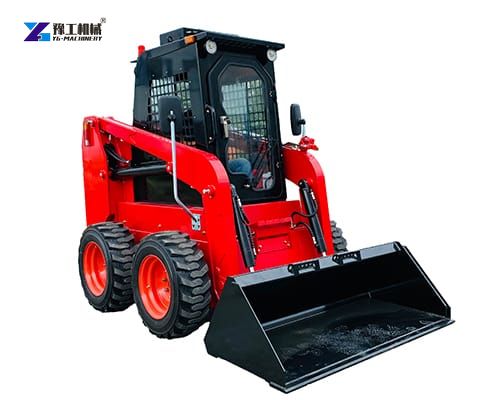

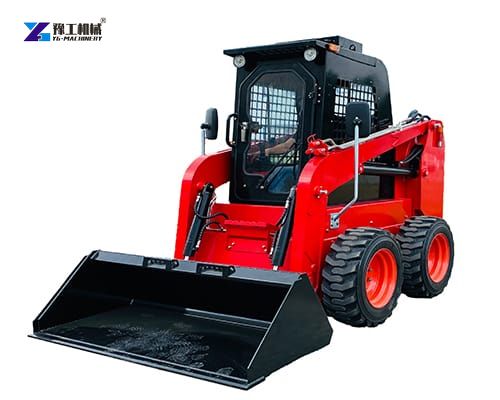

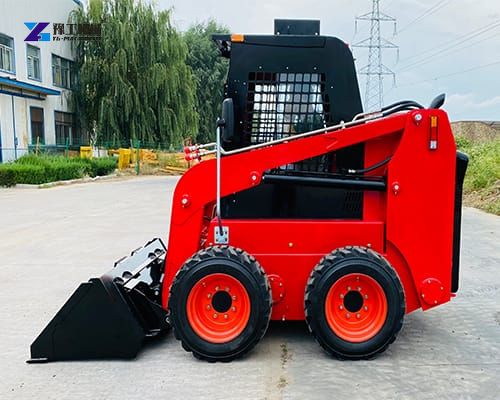

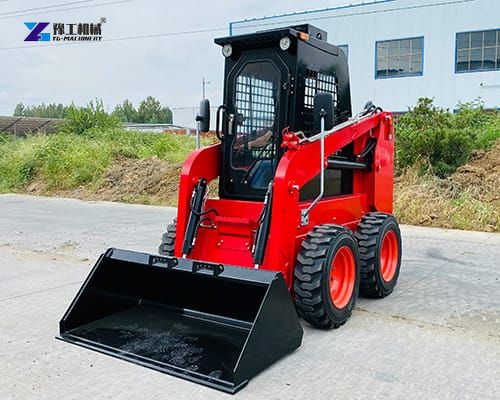

Wheeled (YGW45 / YGW65): Better suited for paved surfaces, hard-packed asphalt, and concrete. Offers lower tire wear costs and quick repositioning across large yards.

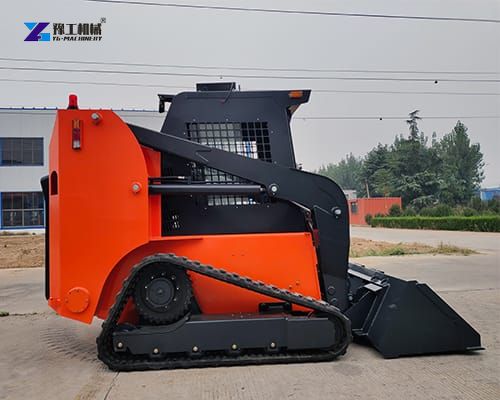

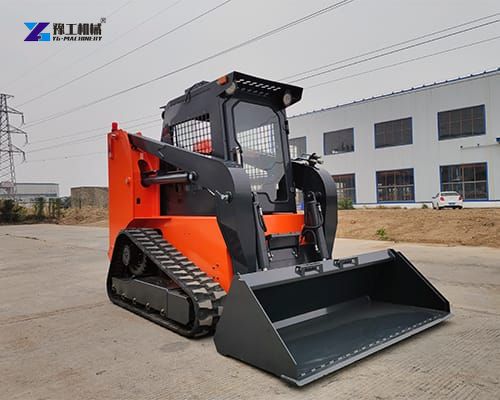

Tracked (YGT50 / YGT65): Better suited for soft clay, loose sand, mud, and wet soil. Offers superior traction with top speeds reaching 12 km/h on model YGT65.
2. Ground Pressure & Stability
Tracked Loaders: Distribute machine self-weight (up to 5024 kg on YGT65) over a wider footprint (1482 mm track width), minimizing ground disturbance on delicate turf or muddy ground.
Wheeled Loaders: Provide higher ground pressure, ideal for digging into hard soils where ground penetration is required.
People can choose the suitable type according to their real needs and requirements. If you are looking for this machine for your projects, please contact us for more detailed information.
